Cross-compilation tips

Linux cross-compilation on Windows or macOS

If this is your first time cross-compiling a Linux binary on macOS, you may encounter a linker error reporting that the linker has received some unknown command-line arguments. That happens because you tried to link a Linux binary using the linker for Apple platforms.

error linking with `cc` failed: exit status 1
  |
  = note: LC_ALL="C" PATH="..." "<linker path>" <arguments ...>
  = note: ld: unknown options: --version-script=... --no-undefined-version ...
          clang: error: linker command failed with exit code 1 (use -v to see invocation)

Similarly, if you try to cross-compile a Linux binary on Windows, you may encounter a different error by Cargo that it couldn't find cc.

error: linker `cc` not found
  |
  = note: program not found

Install Zig

When you want to build your application or library for Linux on Windows or macOS, you have to use a dedicated cross-compilation linker for Linux. There are two available options: GCC and Zig. The latter is much easier to install.

You can manually download Zig here. If you're using a package manager, you can also install Zig as follows:

Package Manager	Command	Zig Installation Path
WinGet (Windows)	winget install -e --id zig.zig	%LOCALAPPDATA%\Microsoft\WinGet\Links\zig.exe
Chocolatey (Windows)	choco install zig	C:\ProgramData\chocolatey\bin\zig.exe
Homebrew (macOS)	brew install zig	/opt/homebrew/bin/zig (Apple Silicon) or /usr/local/bin/zig (Intel)

Next, we have to make Cargo use Zig when building libraries for Linux. First, find where zig is installed. If you installed Zig using a package manager, the installation path is mentioned above. Make sure Zig is installed correctly.

On Windows using PowerShell:

> & "${env:LOCALAPPDATA}\Microsoft\WinGet\Links\zig.exe" version
0.13.0
> C:\ProgramData\chocolatey\bin\zig.exe version
0.13.0

or CMD:

> %LOCALAPPDATA%\Microsoft\WinGet\Links\zig.exe version
0.13.0

On macOS:

> /opt/homebrew/bin/zig version
0.13.0

Make Cargo use Zig (Windows)

We make two batch scripts that uses the zig command. You can use any name, but we'll use the following names.

%USERPROFILE is C:\Users\<user name>.

• %USERPROFILE%\.cargo\x86_64-unknown-linux-gnu-cc.bat
• %USERPROFILE%\.cargo\aarch64-unknown-linux-gnu-cc.bat

In x86_64-unknown-linux-gnu-cc.bat, put the following:

@echo off
<zig path> cc -target x86_64-linux-gnu %*

If you installed Zig with WinGet, the content is:

@echo off
%LOCALAPPDATA%\Microsoft\WinGet\Links\zig.exe cc -target x86_64-linux-gnu %*

Similarly, in aarch64-unknown-linux-gnu-cc.bat, put as follows:

@echo off
<zig path> cc -target aarch64-linux-gnu %*

This is the final step. Put the paths to the script files in the Cargo configuration file. The easiest option is to modify %USERPROFILE%\.cargo\config.toml as follows.

[target.x86_64-unknown-linux-gnu]
linker = "C:\\Users\\<user name>\\.cargo\\x86_64-unknown-linux-gnu-cc.bat"

[target.aarch64-unknown-linux-gnu]
linker = "C:\\Users\\<user name>\\.cargo\\aarch64-unknown-linux-gnu-cc.bat"

You're ready to start building your library and application for Linux.

Make Cargo use Zig (macOS)

We make two shell scripts that uses the zig command. You can use any name, but we'll use the following names.

• ~/.cargo/x86_64-unknown-linux-gnu-cc.sh
• ~/.cargo/aarch64-unknown-linux-gnu-cc.sh

In x86_64-unknown-linux-gnu-cc.sh, put the following:

#! /bin/sh
<zig path> cc -target x86_64-linux-gnu "$@"

If you installed Zig with Homebrew on a Apple Silicon Mac, the content is:

#! /bin/sh
/opt/homebrew/bin/zig -target x86_64-linux-gnu "$@"

Similarly, in aarch64-unknown-linux-gnu-cc.sh, put as follows:

#! /bin/sh
<zig path> cc -target aarch64-linux-gnu "$@"

After making two script files, ensure that these files are executable.

chmod 555 ~/.cargo/x86_64-unknown-linux-gnu-cc.sh
chmod 555 ~/.cargo/aarch64-unknown-linux-gnu-cc.sh

This is the final step. Put the paths to the script files in the Cargo configuration file. The easiest option is to modify ~/.cargo/config.toml as follows.

[target.x86_64-unknown-linux-gnu]
linker = "/Users/<user name>/.cargo/x86_64-unknown-linux-gnu-cc.sh"

[target.aarch64-unknown-linux-gnu]
linker = "/Users/<user name>/.cargo/aarch64-unknown-linux-gnu-cc.sh"

You're ready to start building your library and application for Linux.

LLVM version compatibility on Apple Platforms

If you encounter an undefined symbols linker error like the following when building your Rust library that has a dependency on a C library for iOS, you may have an LLVM version compatibility issue.

Undefined symbols for architecture arm64:
  "___chkstk_darwin", referenced from:
      <function name> in <library file name or object file name>
ld: symbol(s) not found for architecture arm64
clang: error: linker command failed with exit code 1 (use -v to see invocation)

To check your Rust toolchain's LLVM version, use rustc --version --verbose. For example,

> rustc --version --verbose
rustc 1.82.0 (f6e511eec 2024-10-15)
binary: rustc
commit-hash: f6e511eec7342f59a25f7c0534f1dbea00d01b14
commit-date: 2024-10-15
host: aarch64-apple-darwin
release: 1.82.0
LLVM version: 19.1.1

You can see that Rust 1.82 uses LLVM 19. To check the LLVM version used by Xcode, use /usr/bin/gcc --version (Yeah, Apple puts Clang in that path.)

> /usr/bin/xcodebuild -version
Xcode 16.2
Build version 16C5032a
> /usr/bin/gcc --version
Apple clang version 16.0.0 (clang-1600.0.26.6)
Target: arm64-apple-darwin24.3.0
Thread model: posix
InstalledDir: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin

You can see Xcode 16.2 uses LLVM 16. So, the linker in Apple LLVM 16 tried to link object files that targets LLVM 19, which resulted in a linker error.

To resolve this issue, try downgrading your Rust toolchain to a version that uses lower LLVM version. For example, Rust 1.81 uses LLVM 18, so downgrading to 1.81 might help.

> rustup target add 1.81
> rustup default 1.81
> rustc --version --verbose
rustc 1.81.0 (eeb90cda1 2024-09-04)
binary: rustc
commit-hash: eeb90cda1969383f56a2637cbd3037bdf598841c
commit-date: 2024-09-04
host: aarch64-apple-darwin
release: 1.81.0
LLVM version: 18.1.7

You can also set the toolchain directory via the toolchainDirectory property in the rust {} block, so consider using this if you don't want to rustup default 1.81.

To see which Rust version uses which LLVM version, see the Rust compiler CHANGELOG. You can see LLVM version upgrade notes in Internal Changes sections.

C++ Runtime on Android NDK

Android NDK has multiple kinds of C++ runtime libraries, so it is important to check which one you are using now. If you encounter a linker error (whether it's dynamic or static) mentioning functions like __cxa_pure_virtual, you may have not linked C++ runtime to your library properly.

Such error can be a dynamic library load error in runtime like the following:

dlopen failed: cannot locate symbol "__cxa_pure_virtual" referenced by "/data/app/.../libyourlibrary.so"

or a linking error occurred during build as below.

<file name>: undefined reference to `__cxa_pure_virtual'

Currently, two C++ runtime libraries are available: libc++_static.a and libc++_shared.so. The criteria for choosing which one to use is explained in detail in the official documentation. If you are embedding your Rust library to an application, use libc++_shared.so.

To link C++ runtime, use Cargo build scripts. Configure the path to the directory containing the runtime libraries via the cargo::rustc-link-search command. Use cargo::rustc-link-lib to control which runtime library to link. For example in <manifest dir>/build.rs:

use std::env;
use std::path::PathBuf;

fn main() {
    // The ANDROID_NDK_ROOT variable is automatically set to <SDK root>/ndk/<NDK version> by the
    // Cargo Gradle plugin. You may want to implement your own logic finding the path to NDK if
    // you are not invoking Cargo from Gradle.
    let android_ndk_root = env::var("ANDROID_NDK_ROOT").unwrap();

    // set this to false if you want to use libc++_static.a.
    let use_shared = true;

    let host = if cfg!(target_os = "windows") {
        "windows-x86_64"
    } else if cfg!(target_os = "macos") {
        // Apple Sillion Macs also use x86_64.
        "darwin-x86_64"
    } else if cfg!(target_os = "linux") {
        "linux-x86_64"
    } else {
        panic!("unsupported host")
    };

    let ndk_triplet = match env::var("CARGO_CFG_TARGET_ARCH").unwrap().as_str() {
        "aarch64" => "aarch64-linux-android",
        "arm" => "arm-linux-androideabi",
        "x86_64" => "x86_64-linux-android",
        "x86" => "i686-linux-android",
        /* RISC-V is not supported by this project yet */
        _ => panic!("unsupported architecture"),
    };

    // `libc++_shared.so` and `libc++_static.a` are in
    // toolchains/llvm/prebuilt/<host>/sysroot/usr/lib/<NDK triplet>.
    let library_dir = PathBuf::from(android_ndk_root)
        .join("toolchains")
        .join("llvm")
        .join("prebuilt")
        .join(host)
        .join("sysroot")
        .join("usr")
        .join("lib")
        .join(ndk_triplet);

    // Configure the library directory path.
    println!("cargo::rustc-link-search={}", library_dir.display());

    // Configure the library name.
    println!(
        "cargo::rustc-link-lib={}={}",
        if use_shared { "dylib" } else { "static" },
        if use_shared { "c++_shared" } else { "c++_static" },
    );
}

Some Rust libraries automatically find libc++_static.a or libc++_shared.so from NDK, and they usually allow users to control this using Cargo features. If some of your dependency uses libc++_static.a while others use libc++_shared.so, you may encounter another linker error like the following.

ld: error: <HOME>/.rustup/toolchains/.../lib/rustlib/armv7-linux-androideabi/lib/libcompiler_builtins-...(compiler_builtins-... .o): symbol __aeabi_memcpy8@@LIBC_N has undefined version LIBC_N

Before such error is printed, Cargo shows the entire linker invocation arguments. For example, you may be able to see something like:

error: linking with `<linker path>` failed: exit status: 1
  |
  = note: LC_ALL="C" PATH="..." "<linker path>" <arguments ...>

Copy this error and see if both -lc++_static and -lc++_shared are in the invocation. If this is the case, inspect the output emitted by build scripts of dependencies. You can read it from target[/<Cargo triplet>]/<profile>/build/<package name>-<hash>/output. For example in target/aarch64-linux-android/debug/build/blake3-<hash>/output, you can see something like the following.

cargo:rerun-if-env-changed=CARGO_FEATURE_PURE
cargo:rerun-if-env-changed=CARGO_FEATURE_NO_NEON
cargo:rerun-if-env-changed=CARGO_FEATURE_NEON
cargo:rerun-if-env-changed=CARGO_FEATURE_NEON
cargo:rerun-if-env-changed=CARGO_FEATURE_NO_NEON
cargo:rerun-if-env-changed=CARGO_FEATURE_PURE
cargo:rustc-cfg=blake3_neon
TARGET = Some("aarch64-linux-android")
OPT_LEVEL = Some("0")
HOST = Some("aarch64-apple-darwin")
...

Check whether there is something like cargo::rustc-link-lib=c++_static in it.

When you use libc++_shared.so, it should be embedded into the application. Use the dynamicLibraries property in the builds.android {} block to ensure libc++_shared.so is included in the resulting Android application/library.

cargo {
    builds.android {
        dynamicLibraries.addAll("c++_shared")
    }
}

Supporting 16 KB page sizes on Android

💡 We recommend to first read the official documentation.

⚠️ If you're using UniFFI, you also have to upgrade JNA to 5.17 or higher. Please see How to upgrade the JNA version for details.

Starting from Android 15, AOSP allows devices to use a page size of 16 KB. You should configure the linker to use a 16 KB page size to properly handle this. If you're using NDK r28 or higher, NDK will handle this automatically.

How to check the NDK version

You can get the NDK version you're using via android.ndkVersion.

println("ndkVersion: ${android.ndkVersion}")

> Configure project :your-project
ndkVersion: 27.0.12077973

If the above code reports NDK r27 or lower, you can set the NDK version using the same property.

android {
    ndkVersion = "28.0.13004108"
}

Manually configuring the page size

If you're not able to upgrade the NDK version, you have two options to configure the page size manually.

Using Gradle DSL

Pass -C link-args=-Wl,-z,max-page-size=16384 to RUSTFLAGS.

cargo {
    builds.android {
        variants {
            buildTaskProvider.configure {
                additionalEnvironment.put(
                    "RUSTFLAGS",
                    "-C link-args=-Wl,-z,max-page-size=16384",
                )
            }
        }
    }
}

Using Cargo Configuration

You can also modify RUSTFLAGS in Cargo Configuration. Putting rustflags = ["-C", "link-args=-Wl,-z,max-page-size=16384"] has the same effect as the Gradle DSL described above. For example in %USERPROFILE%\.cargo\config.toml (Windows) or ~/.cargo/config.toml (macOS & Linux), you can configure this as follows:

[target.aarch64-linux-android]
rustflags = ["-C", "link-args=-Wl,-z,max-page-size=16384"]

[target.armv7-linux-androideabi]
rustflags = ["-C", "link-args=-Wl,-z,max-page-size=16384"]

[target.x86_64-linux-android]
rustflags = ["-C", "link-args=-Wl,-z,max-page-size=16384"]

[target.i686-linux-android]
rustflags = ["-C", "link-args=-Wl,-z,max-page-size=16384"]

How to check the page size of the dynamic library

To check whether the Rust library is built with a 16 KB page size, you can use the llvm-readelf command in NDK.

<Android SDK Root>/ndk/<NDK version>/toolchains/llvm/prebuilt/<Host Triplet>/bin/llvm-readelf -l target/<target triplet>/<profile>/libyour_project.so

For example,

# On Windows, checking a AArch64 Android dynamic library
<NDK Root>\toolchains\llvm\prebuilt\windows-x86_64\bin\llvm-readelf.exe -l target\aarch64-linux-android\debug\libyour_project.so

# On macOS, checking a Arm32 Android dynamic library
# Apple Silicon Macs also use darwin-x86_64
<NDK Root>/toolchains/llvm/prebuilt/darwin-x86_64/bin/llvm-readelf -l target/armv7-linux-androideabi/debug/libyour_project.so

# On Linux
<NDK Root>/toolchains/llvm/prebuilt/linux-x86_64/bin/llvm-readelf -l target/armv7-linux-androideabi/debug/libyour_project.so

When you run the command, you can see something like this.

Elf file type is DYN (Shared object file)
Entry point 0x0
There are 10 program headers, starting at offset 64

Program Headers:
  Type           Offset   VirtAddr           PhysAddr           FileSiz  MemSiz   Flg Align
  PHDR           0x000040 0x0000000000000040 0x0000000000000040 0x000230 0x000230 R   0x8
  LOAD           0x000000 0x0000000000000000 0x0000000000000000 0x018d28 0x018d28 R   0x4000
  LOAD           0x018d28 0x000000000001cd28 0x000000000001cd28 0x0306c8 0x0306c8 R E 0x4000
  LOAD           0x0493f0 0x00000000000513f0 0x00000000000513f0 0x001e08 0x002c10 RW  0x4000
  LOAD           0x04b1f8 0x00000000000571f8 0x00000000000571f8 0x000078 0x0009a0 RW  0x4000
  DYNAMIC        0x04ae40 0x0000000000052e40 0x0000000000052e40 0x000190 0x000190 RW  0x8
  GNU_RELRO      0x0493f0 0x00000000000513f0 0x00000000000513f0 0x001e08 0x002c10 R   0x1
  GNU_EH_FRAME   0x00bd6c 0x000000000000bd6c 0x000000000000bd6c 0x00234c 0x00234c R   0x4
  GNU_STACK      0x000000 0x0000000000000000 0x0000000000000000 0x000000 0x000000 RW  0x0
  NOTE           0x000270 0x0000000000000270 0x0000000000000270 0x000098 0x000098 R   0x4

 Section to Segment mapping:
  Segment Sections...
   00
   01     .note.android.ident .dynsym .gnu.version .gnu.version_r .gnu.hash .hash .dynstr .rela.dyn .rela.plt .rodata .gcc_except_table .eh_frame_hdr .eh_frame
   02     .text .plt
   03     .data.rel.ro .fini_array .dynamic .got .got.plt .relro_padding
   04     .data .bss
   05     .dynamic
   06     .data.rel.ro .fini_array .dynamic .got .got.plt .relro_padding
   07     .eh_frame_hdr
   08
   09     .note.android.ident
   None   .comment .debug_abbrev .debug_info .debug_aranges .debug_ranges .debug_str .debug_line .debug_loc .symtab .shstrtab .strtab

Look at the program headers named LOAD.

LOAD           0x000000 0x0000000000000000 0x0000000000000000 0x018d28 0x018d28 R   0x4000

If the page size is configured correctly, you would be able to see the Align column has a value of 0x4000 (16384), which means that the dynamic library is built with a page size of 16 KB.

If this value is 0x1000 (4096), that means the linker used a 4 KB page size. Check the NDK version or RUSTFLAGS again if you encountered this problem.

How to upgrade the JNA version

Please refer to java-native-access/jna#1647 for the JNA-side issue.

If you're using UniFFI, you also have to upgrade JNA to 5.17 or higher. The version requirements of Kotlin library dependencies by UniFFI uses the prefer requirements, so you can override versions of them to the one you want. To upgrade the JNA version, add a dependency on the version you want as follows.

// Kotlin Multiplatform
kotlin {
    sourceSets {
        androidMain {
            dependencies {
                implementation("net.java.dev.jna:jna:5.17.0@aar")
            }
        }
    }
}

// Pure Android
dependencies {
    implementation("net.java.dev.jna:jna:5.17.0@aar")
}

Stripping debug information and symbol names from Android NDK binaries

When publishing an app, it's recommended to reduce its size by stripping debug information and symbol names from native libraries. Both Cargo and the Android Gradle Plugin offer options to control whether debug information is stripped. While this doesn't prevent decompilation or tampering, some Android developers choose to do it because they're concerned that attackers might exploit this information. However, removing this information can make it more challenging to debug issues, both during development and after your app has been published.

Debug information and symbol names are essential for debugging native app crashes

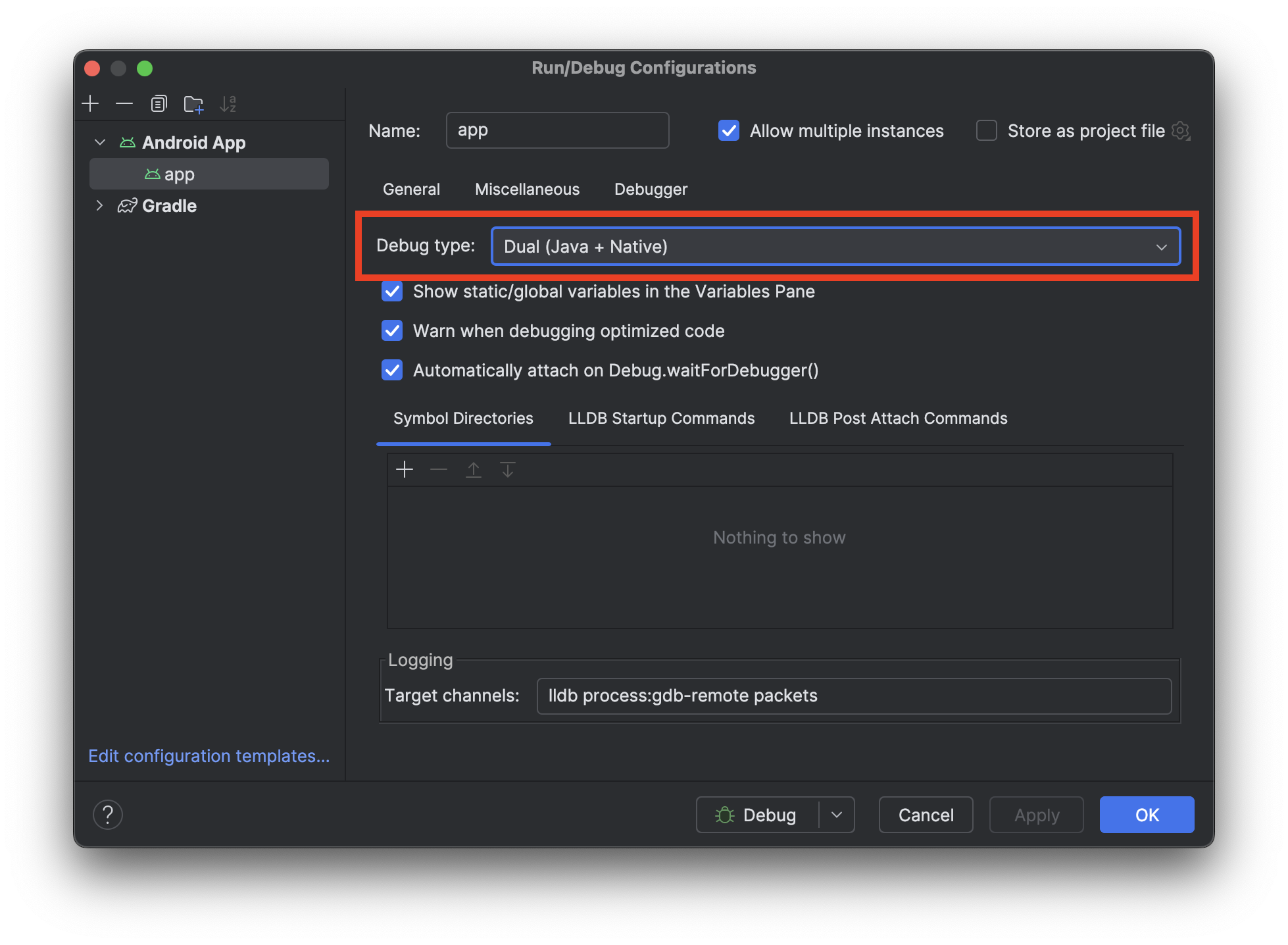

Debug information is useful when debugging your app during development. In Android Studio's debugging settings, there is an option to attach native debugger. If debug information is preserved in the shared object, the debugger can use that information, so you can set breakpoints and inspect the value of local variables at runtime, which can help you resolving potential panics or crashes within Rust (native) functions.

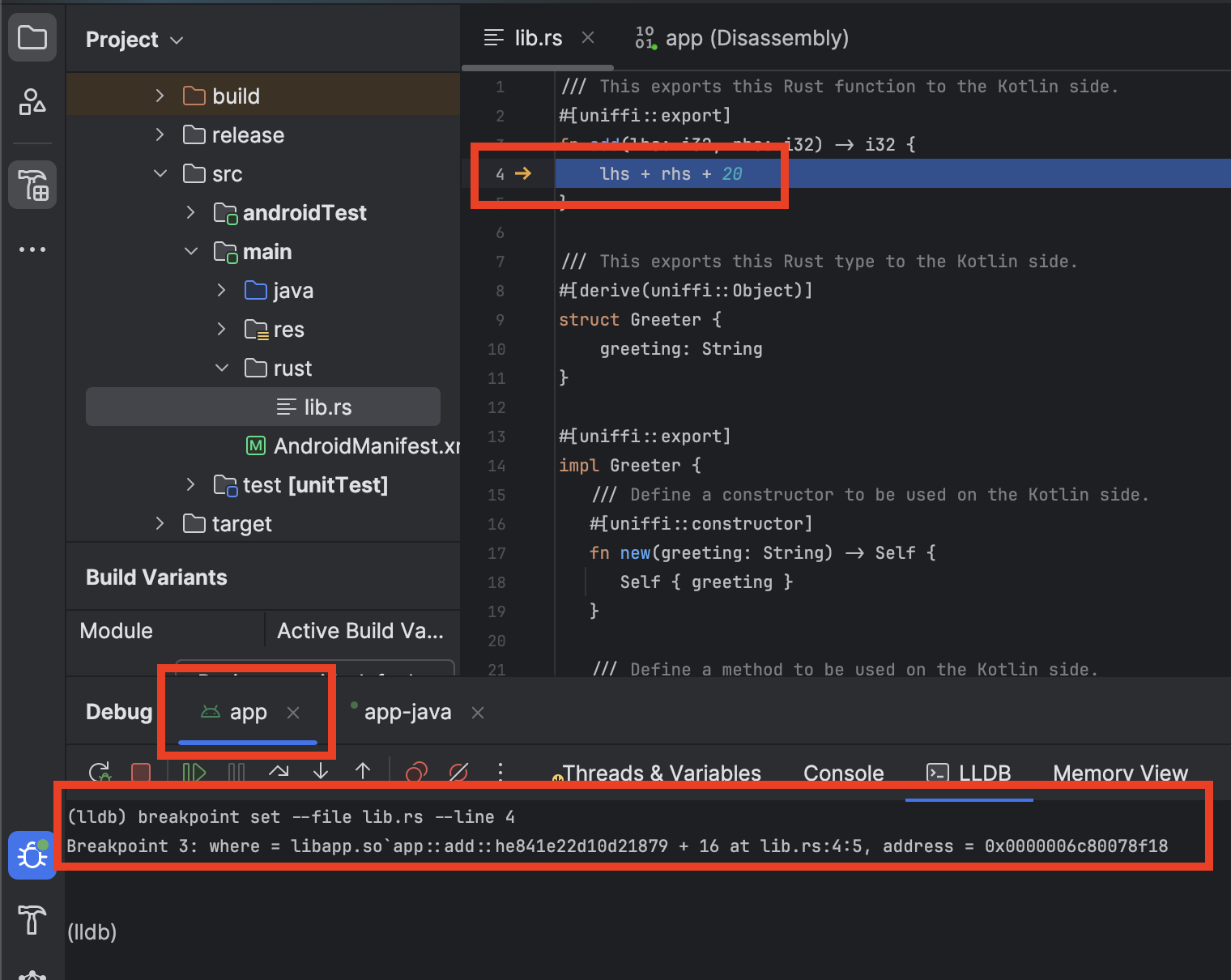

⚠️ While it is possible to set breakpoints in Rust functions, Android Studio currently does not allow setting them directly in the editor for Rust code. To set a breakpoint in a Rust function, you would need to manually pause the app during a debugging session and then use the breakpoint set command in the LLDB console.

The debugger settings	Debugging example

Symbol names are useful when you encounter app crashes inside a Rust (or a native) function. It is used to map the addresses inside the call stack to a location in source code. Even when it is not available during the runtime, the mapping process can be performed later using the ndk-stack tool inside NDK. When you upload the symbol names to Google Play or Firebase Crashlytics, these services uses ndk-stack to show the deobfuscated stacktrace as well.

So before deciding to stripping all the debug information while building the app, let's explore how it is handled throughout the building and the releasing process.

How Cargo and AGP use LLVM to strip debug information and symbol names

A shared object file consists of multiple sections. For instance, the .text section contains the library's machine code, while the .rodata section holds read-only data, such as the initial values of global variables. Other sections store various additional information. Debug information is stored in sections with names starting with .debug_. Symbol names reside in the .strtab section, which is referenced by entries in the .symtab section. Therefore, stripping this information involves removing the .debug_*, .strtab, and .symtab sections from the shared object.

To verify the presence of these sections, you can use the llvm-readelf command in the NDK.

<Android SDK Root>/ndk/<NDK version>/toolchains/llvm/prebuilt/<Host Triplet>/bin/llvm-readelf -S target/<target triplet>/<profile>/libyour_project.so

The llvm-readelf command reports the complete list of sections in the shared object. Executing the llvm-readelf command will display the list similar to the following example. In the example, you can observe that the .debug_abbrev is at index 24, and .symtab at 30.

There are 33 section headers, starting at offset 0x2aafd8:

Section Headers:
  [Nr] Name              Type            Address          Off    Size   ES Flg Lk Inf Al
  [ 0]                   NULL            0000000000000000 000000 000000 00      0   0  0
  [ 1] .note.android.ident NOTE          0000000000000270 000270 000098 00   A  0   0  4
  [ 2] .dynsym           DYNSYM          0000000000000308 000308 000330 18   A  6   1  8
  [ 3] .gnu.version      VERSYM          0000000000000638 000638 000044 02   A  2   0  2
  [ 4] .gnu.version_r    VERNEED         000000000000067c 00067c 000040 00   A  6   2  4
  [ 5] .gnu.hash         GNU_HASH        00000000000006c0 0006c0 000020 00   A  2   0  8
  [ 6] .dynstr           STRTAB          00000000000006e0 0006e0 00019b 00   A  0   0  1
  [ 7] .rela.dyn         RELA            0000000000000880 000880 001c80 18   A  2   0  8
  [ 8] .rela.plt         RELA            0000000000002500 002500 0002e8 18  AI  2  19  8
  [ 9] .gcc_except_table PROGBITS        00000000000027e8 0027e8 001d48 00   A  0   0  4
  [10] .rodata           PROGBITS        0000000000004530 004530 002940 00 AMS  0   0 16
  [11] .eh_frame_hdr     PROGBITS        0000000000006e70 006e70 000a64 00   A  0   0  4
  [12] .eh_frame         PROGBITS        00000000000078d8 0078d8 004a58 00   A  0   0  8
  [13] .text             PROGBITS        000000000000d330 00c330 0179d8 00  AX  0   0  4
  [14] .plt              PROGBITS        0000000000024d10 023d10 000210 00  AX  0   0 16
  [15] .data.rel.ro      PROGBITS        0000000000025f20 023f20 0013b8 00  WA  0   0  8
  [16] .fini_array       FINI_ARRAY      00000000000272d8 0252d8 000010 00  WA  0   0  8
  [17] .dynamic          DYNAMIC         00000000000272e8 0252e8 000180 10  WA  6   0  8
  [18] .got              PROGBITS        0000000000027468 025468 000070 00  WA  0   0  8
  [19] .got.plt          PROGBITS        00000000000274d8 0254d8 000110 00  WA  0   0  8
  [20] .relro_padding    NOBITS          00000000000275e8 0255e8 000a18 00  WA  0   0  1
  [21] .data             PROGBITS        00000000000285e8 0255e8 000068 00  WA  0   0  8
  [22] .bss              NOBITS          0000000000028650 025650 000918 00  WA  0   0  8
  [23] .comment          PROGBITS        0000000000000000 025650 0001ae 01  MS  0   0  1
  [24] .debug_abbrev     PROGBITS        0000000000000000 0257fe 000aae 00      0   0  1
  [25] .debug_info       PROGBITS        0000000000000000 0262ac 0a4b5b 00      0   0  1
  [26] .debug_aranges    PROGBITS        0000000000000000 0cae07 006470 00      0   0  1
  [27] .debug_str        PROGBITS        0000000000000000 0d1277 0e855c 01  MS  0   0  1
  [28] .debug_line       PROGBITS        0000000000000000 1b97d3 04ab52 00      0   0  1
  [29] .debug_ranges     PROGBITS        0000000000000000 204325 092af0 00      0   0  1
  [30] .symtab           SYMTAB          0000000000000000 296e18 00a050 18     32 1677  8
  [31] .shstrtab         STRTAB          0000000000000000 2a0e68 000157 00      0   0  1
  [32] .strtab           STRTAB          0000000000000000 2a0fbf 00a016 00      0   0  1
Key to Flags:
  W (write), A (alloc), X (execute), M (merge), S (strings), I (info),
  L (link order), O (extra OS processing required), G (group), T (TLS),
  C (compressed), x (unknown), o (OS specific), E (exclude),
  R (retain), p (processor specific)

By default, when building a library using Cargo, debug information (.debug_*) is included only when using the debug profile, and the symbol names (.symtab and .strtab) are always preserved. Cargo profiles offer options named debug and strip to customize this behavior.

[package]
...

[profile.release]
debug = 0
strip = "symbols"

On the other hand, when the Android Gradle plugin packages build results into an .aar or a .aab file, debug information and symbol names are stripped by default. To preserve it, you can add the Rust library to the keepDebugSymbols property inside the android { packaging { jniLibs {} } } block.

android {
    packaging {
        jniLibs.keepDebugSymbols += "**/*.so"
    }
}

Both Cargo and the AGP uses the llvm-strip command in the NDK to strip debug information and symbol names. Specifically, Cargo uses llvm-strip --strip-all when strip = "symbols", while AGP uses llvm-strip --strip-unneeded.

Debug information are automatically extracted from libraries when packaging .aab

💡 To learn more about .aab files, please refer to the official documentation.

When you build an Android app, the resulting output file is either an .apk or an .aab file. The .apk file is used when you hit the run button inside Android Studio, which then can be installed on a virtual or a physical Android device via adb. The .aab file is used when uploading the app to Google Play.

However, some services like Google Play or Firebase Crashlytics still require symbol names to deobfuscate stacktraces, as mentioned earlier. .aab provides a dedicated directory for this purpose. For instance, if you include libyour_project.so in your library, AGP will generate BUNDLE-METADATA/com.android.tools.build.debugsymbols/<ABI name>/libyour_project.so.sym inside the .aab. This .sym file is actually a shared object file that retains symbol information for ndk-stack, which is created with llvm-objcopy --strip-debug.

You can also include the full debug information within the .aab file. To achieve this, modify the value of the ndk.debugSymbolLevel property to "FULL" inside the android { buildTypes { } } as follows. In this case, the generated metadata file is located at BUNDLE-METADATA/com.android.tools.build.debugsymbols/<ABI name>/libyour_project.so.dbg.

android {
    buildTypes {
        release {
            ndk.debugSymbolLevel = "FULL"
        }
    }
}

If a .so file matches the glob pattern specified in the keepDebugSymbols property, the .so file is included as-is in the <base or feature>/lib/<ABI name>/libyour_project.so directory within the .aab file. Unlike .aab files, the .apk format does not have a dedicated metadata directory for this purpose. By default, even in debug builds, the .apk file contains stripped .so files. Therefore, to debug a Rust function at runtime, you have to make sure the pattern assigned to keepDebugSymbols matches the .so file you want to debug.

❗ If llvm-strip is not properly installed on your computer, you might encounter a message like: Unable to strip the following libraries, packaging them as they are: ... during stripping shared objects using the AGP. If this error occurs, verify that it is properly installed. For NDK version 25 or higher, it should be located at <ndk version>/toolchains/llvm/prebuilt/<host triplet>/bin/llvm-strip.

Native Android libraries in .aar should contain debug information

💡 To learn more about .aar files, please refer to the official documentation.

When you make an Android Java/Kotlin library, you can publish the library as a .jar file or an .aar file. A typical .jar file contains .class files compiled from a Java or a Kotlin source code, some Java resources, and minor metadata files. On the other hand, an .aar file can provide more Android-specific files, such as locale-sensitive resources accessible by the Android resource API or the AndroidManifest.xml file that declares the permissions needed by the app consuming the library.

While it is technically possible to put native shared objects inside the Java resource directory and load them during the runtime, it is recommended to place them in the designated NDK library supported by .aar. Since native shared objects are not portable across different CPU architectures, you have to provide a different shared object file for each ABI, which is one of the built-in features of .aar. The Gobley Cargo plugin automatically handles this process.

The published .aar file can then be used as a dependency by other app projects. When the consumer app project is packaged into its own .aab file, the files from the .aar dependency are first extracted and then re-packaged into the final output. For this reason, .so files in .aar should retain their symbol names. In addition, if you choose to keep the debug information (by modifying debug in Cargo and keepDebugSymbols in Gradle), you can even debug Rust functions at runtime. The symbols and the debug information can be stripped when the consuming app itself is built.

[profile.release]
debug = 2

android {
    // Don't strip .so files
    packaging {
        jniLibs.keepDebugSymbols += "**/*.so"
    }
    // Keep the debug information
    buildTypes {
        release {
            ndk.debugSymbolLevel = "FULL"
        }
    }
}

However, if your library is closed-source and you need to protect its internal details, you can strip the symbols using Cargo or Gradle, as mentioned earlier.

Use Link-Time Optimization (LTO) to reduce the size of the binary

One common misconception about Rust is that its final binary sizes are inherently too large for practical use. While it's true that debug builds can be substantial, this is often due to the inclusion of the pre-built Rust standard library distributed via rustup, which can range from 50MB to 100MB. However, both Cargo and Kotlin/Native support Link-Time Optimization (LTO), to reduce the size of the binary. LTO analyzes the binary and prunes unused functions and global variables, significantly reducing the size of the binary. To enable LTO on the Cargo side, you can set lto = true using Cargo profiles.

[profile.release]
lto = true

On the other hand, Kotlin/Native enables LTO by default for release builds, so no additional configuration is required.

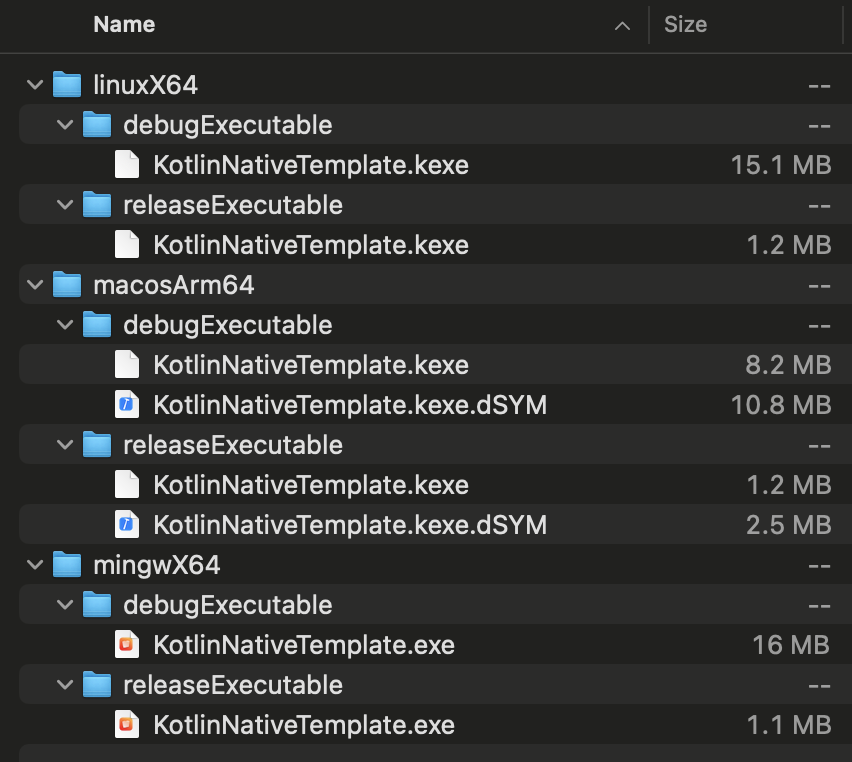

The following results are from an experiment using the Kotlin/Native tutorial. As you can see, LTO significantly reduces the size of the compiled programs.

Building for Windows on ARM

By default on an x64 machine, Visual Studio installs MSVC for x64/x86 only. If you try to link a program for ARM64 without the MSVC ARM64 toolchain, you may see an error that Cargo couldn't find link.exe.

> cargo build --target aarch64-pc-windows-msvc

error: linker `link.exe` not found
  |
  = note: program not found

note: the msvc targets depend on the msvc linker but `link.exe` was not found

note: please ensure that Visual Studio 2017 or later, or Build Tools for Visual Studio were installed with the Visual C++ option.

note: VS Code is a different product, and is not sufficient.

Make sure you installed the ARM64/ARM64EC compilers and linkers via Visual Studio Installer. Double-check whether you installed the ARM64 toolchain instead of the 32-bit ARM toolchain. This project does not support building for 32-bit ARM Windows.
